Cutting tools have to withstand a lot

CDG Award 2023: Thin layers for resilient tools

The CDG Award 2023 goes to Nina Schalk

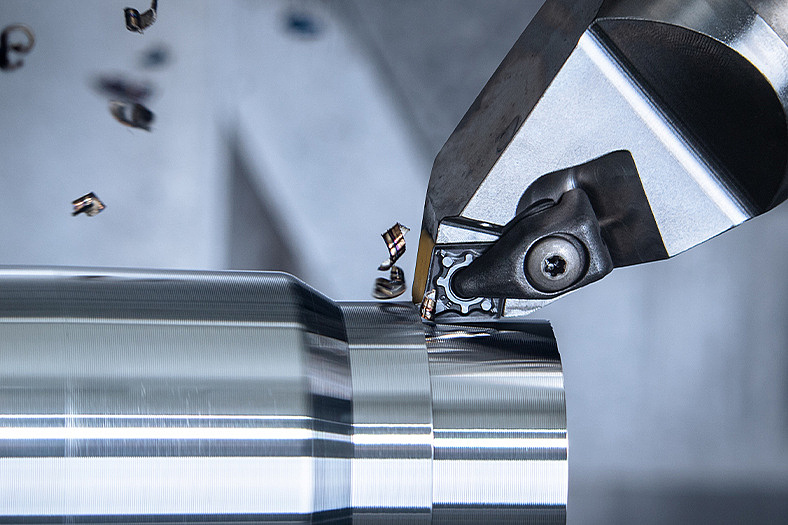

From cars to aeroplane engines: turning, drilling and milling components require cutting tools that have to withstand a lot.This is why they are specially coated.Nina Schalk knows how.


Nina Schalk from the University of Leoben wants to know exactly: Using various methods and devices, she looks as closely as possible into the wafer-thin coatings for metal tools: how do the different elements arrange themselves, do they form large or small crystals, how do they react to heat or oxygen? And what does this mean for hardness, fracture toughness and durability? These findings from basic research are very valuable for the company partner CERATIZIT Austria Gesellschaft m.b.H. - they are the starting point for improving existing tools and developing new ones for metalworking.


Martin Gerzabek, President of the CDG: ‘Coating tools - that may sound boring to some.But Nina Schalk, her team and her partner CERATIZIT see it differently.Their research is not only incredibly exciting, it also leads to more durable, resource-efficient products, for example for the automotive industry, turbines for energy generation or aircraft engines.Austria needs knowledge, technical expertise and innovative strength to remain fit for the future.Nina Schalk is an excellent example of how CD Laboratories are one of the places where precisely this is lived and passed on.A well-deserved award winner, to whom I also extend my warmest congratulations."


Wilfried Eichlseder, Rector of Montanuniversität Leoben, explains the importance of CD Laboratories for his university: "CD Laboratories provide an ideal basis for scientists who are establishing their own field of research.On the one hand, the academic environment in which the CD Laboratory is located provides the basis for scientific work, and on the other hand, there is a close connection to industrial partners who contribute their expertise and form the bridge from scientific findings to implementation in product development.Eight CD Laboratories are currently active at the University of Leoben.I wish all the heads and employees many scientific findings and, above all, joy in their work!May the partners from industry incorporate as many of these findings as possible into successful products!


Wafer-thin layers, state-of-the-art equipment, new methods


Even the production of the coatings is an exciting process: ‘pre-material’, the material that is to form the coating, is vaporised in a deposition chamber - and is then deposited on the workpiece to be coated. Depending on the elements and composition of the pre-material, and depending on the pressure, temperature, gases supplied, etc., different coatings are created.


These coatings are around three to twenty micrometres thick. For comparison: a human hair has a diameter of around 50 micrometres. With the right instruments, however, entire landscapes of elements, phases, layers and crystals become visible. For example, the phases can be crystalline or amorphous, they can lie on top of each other in layers or one can enclose the other and form a nanocomposite, and so on. This is the world that Nina Schalk and her team are researching and describing - and linking it to the properties of the material: hardness, toughness, temperature resistance, oxidation and much more.

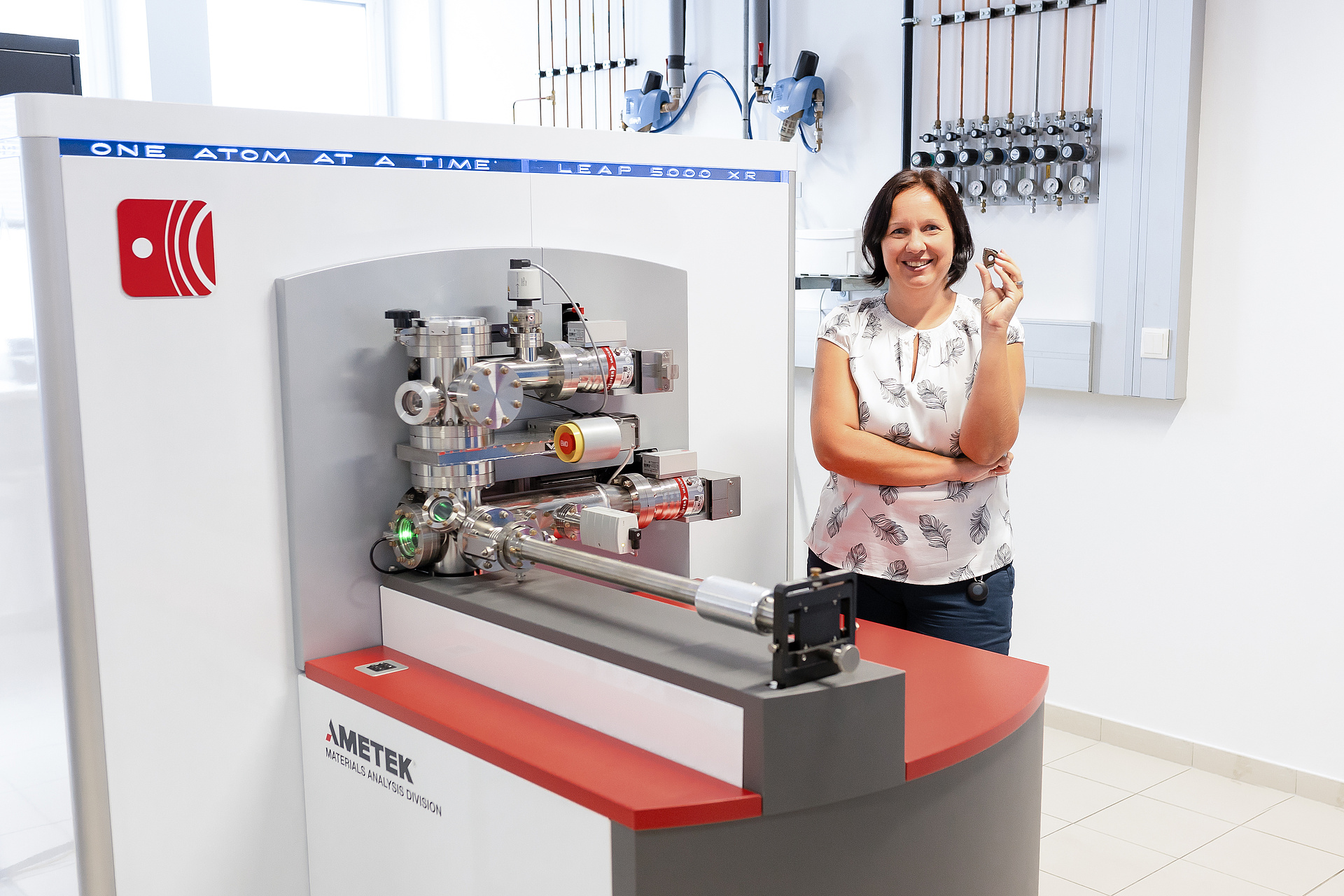

Whether scanning electron microscope, transmission electron microscope, X-ray diffractometer or synchotron particle accelerator: many of the CD Laboratory's methods involve bombarding the material with electrons or X-rays and drawing conclusions about the smallest structures of the material from the reactions. Prizewinner Schalk highlights the atom probe as a particularly exciting example - after all, the University of Leoben is home to the only two atom probes in Austria: prepared thin tips of a few hundred nanometres are vaporised atom by atom - the vaporised atoms land on a position-sensitive detector that makes it possible to deduce which atom was where. Parts of the coating can therefore actually be visualised at an almost atomic level. Of course, all these devices do not work by themselves for this particular application: a large part of the research is method development.


Successes and results


Innovation beyond the state of the art: Until a few years ago, new coatings were developed by trial and error. The new methods now make it possible to understand why some materials and methods are more suitable than others. On this basis, the company can now develop and test proposals for even better materials.


Dragonskin: Based on the results of these investigations, CERATIZIT has developed new coated carbide grades for turning steel, which were successfully launched on the market in January 2022 as so-called Dragonskin coatings. These have a higher durability and also have an indicator layer that recognises heavy wear and the approaching end of the tool's service life in good time. The tool is therefore replaced at exactly the right time - not too early and not too late, another contribution to conserving resources.


Sustainability: When using coated tools, it often gets very hot, so coolants and lubricants are used, which are often harmful to the environment - better coatings can significantly reduce the use of these chemicals.


Circular economy: Greater knowledge makes it possible, for example, to incorporate fewer different elements into the coatings than was previously the case - because there is a better understanding of which properties can be achieved and how. On the one hand, this reduces dependence on critical elements such as tantalum; on the other hand, ‘pure’ materials are also easier to recycle - an important prerequisite for the circular economy.

"Congratulations to Nina Schalk!Together with her corporate partner CERATIZIT, she shows how much science and business can benefit from each other:The basic knowledge gained in the CD Laboratory about the physical properties of various coatings is utilised in the company for further and new developments.This increases quality and efficiency, secures jobs and strengthens Austria as a business location - today and in the future."


Martin Kocher, Federal Minister of Labour and Economy



Photo gallery of the ceremony
Video recording of the ceremony



















"I am an enthusiastic experimental researcher!We work with tiny samples on huge devices and explore and describe a world that was previously invisible.In this way, we create data that may later be used for simulations.New knowledge as a basis for innovation - entirely in the spirit of the Christian Doppler Forschungsgesellschaft, whose funding model makes my research in this form possible in the first place."
 Award winner Nina Schalk












"The Ceratizit Group is the fastest growing company internationally in the field of machining.The aim is to be one of the top 3 companies and to realise this with innovations in technical areas and sustainability.This is only possible with sound knowledge, which is developed in the CD Laboratory.This is the only way to better understand the processes on the cutting tool, to further optimise the materials and to drive the technology forward.This CD Laboratory is therefore an essential building block in the Ceratizit Group's research strategy.
Christoph Czettl, R&D Manager Cutting Tools at corporate partner CERATIZIT

CD Laboratory for Advanced Coated Cutting Tools

Head of research unit

Priv.Doz. DI Dr. Nina Schalk

Montanuniversität Leoben

Duration

01.10.2017 - 30.09.2024

Commercial Partner

CERATIZIT Austria Gesellschaft m.b.H.
